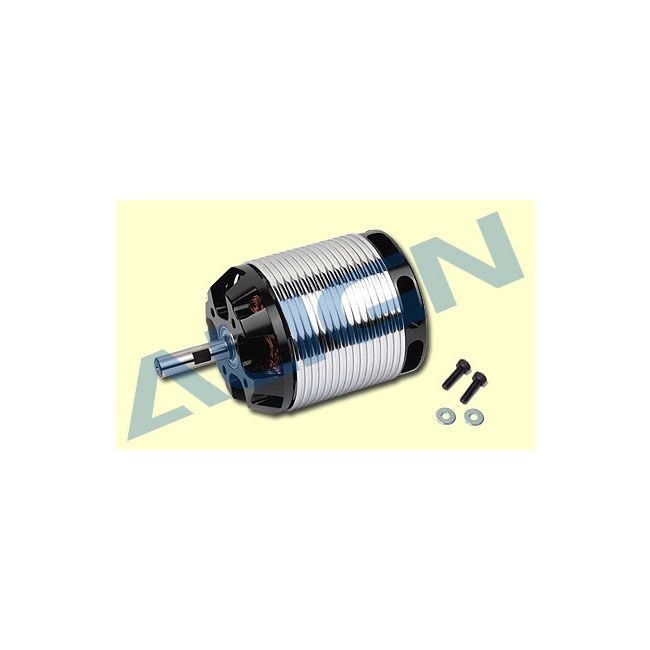

HML60M02 600MX Brushless Motor(1220KV) RCM-BL600MX

600MX Brushless Motor(1220KV) RCM-BL600MX

.The 600MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
2.The 600MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
3.Maintenance free, high torque, high efficiency, stable and quiet.
4.High-speed ball bearings, powerful magnetic outrunner rotor.


Specification:

Input voltage:DC11.1V-25.2V 3-6cell Li-Poly
Max continuous current:90A/150A(5sec)
Max output power:2000W/3000W(5sec)
KV value:1220KV
Dimension: spindle 6x45x59mm
Weight: 320g (prox.)

Accessories:
Socket screw(M3X10)X2
Washer(3X8X1)X2
ALIGN standard 4mm gilt terminal x 3
